100% Customization per Drawing

Mold Opening Controllers

Precision mold opening controllers for three-plate and multi-plate molds — parting lock sets, stop & puller bolts, tension links and urethane opening components. Roller lock accuracy ±0.02 mm, MISUMI-interchangeable mounting, MOQ 1, 3–7 day lead time.

Four parting lock technologies — resin sleeve, side mount, roller (±0.02 mm) and magnetic
Stop bolts & puller bolts for three-plate stop position and pull-back control
Tension links with stroke up to 120 mm, configurable in 5 mm increments
Urethane washers & springs (60A–95A Shore) for separation force and cushioning
MISUMI interchangeable mounting — resin sleeve sets in Ø10 / 13 / 16 / 20 mm
MOQ 1 piece — 3–7 day standard, 24–72 h urgent support

Download CAD / Specs

Fast Response within 2 HoursSupport STEP, IGES, DWG, PDF Files

Technical Specifications

Mold Opening Controllers Technical Parameters & Type Specs

Controller Families

5 Standard Series

Parting locks, stop/puller bolts, tension links, urethane components & prevention plates

Locking Accuracy

±0.02 – ±0.1 mm

Roller lock ±0.02 mm | resin sleeve ±0.05 mm | side mount ±0.1 mm

Operating Temperature

Up to 200 °C

Heat-resistant sleeves & roller locks; magnets rated to 80 °C

Stroke Control Range

Up to 120 mm

Tension links configurable in 5 mm increments

Parameter	Technical Details / Standard Values
Parting Lock Types	Resin sleeve, side mount, roller interlock, magnetic — MISUMI interchangeable mounting, JIS & metric configurations
Parting Lock Nominal Sizes	Ø10 / Ø13 / Ø16 / Ø20 mm tapered bolts with 1045 steel bushings
Locking Positioning Accuracy	Resin sleeve ±0.05 mm \| side mount ±0.1 mm \| roller interlock ±0.02 mm
Max. Operating Temperature	80 °C (nylon sleeve) / 200 °C (heat-resistant sleeve & roller lock) / 80 °C magnetic Curie limit
Maintenance Cycle	Resin sleeve 200K–500K shots \| side mount 100K–300K shots \| roller 500K+ shots \| magnetic maintenance-free
Tension Link Stroke	Single stage up to 120 mm; dual-stage two-oval-hole links up to 60 mm per stage; stroke = oval hole length − bolt diameter
Stop & Puller Bolts	Female thread, male thread & short-tip puller bolts plus stopper bolts; collars precision-ground to ±0.01 mm
Urethane Opening Components	UW soundproof washers & MAZ springs in 60A–95A Shore hardness; pusher pins (PSP) for runner stripper plates
Applicable Mold Types	Three-plate molds, stripper plate molds, stack molds & multi-plate tooling

Need a non-standard size or special alloy core pin? We specialize in 100% custom machining according to your 2D/3D CAD drawings.

APPLICATION & INDUSTRY SOLUTIONS

Mold Opening Controllers for Demanding Mold Applications

🚗 Automotive

Automotive Connector & Sensor Molds

Roller interlock parting locks with ±0.02 mm accuracy for high-cycle connector housings and sensor bodies — 500K+ shot intervals, PPAP-ready.

🩺 Medical

Medical & Cleanroom Molds

Magnetic parting locks with zero mechanical wear and no particulate for medical, food and semiconductor tooling; urethane washers for quiet, cushioned opening.

🔌 Electronics

3C Electronics & Connector Molds

Stopper and puller bolt sets for precise runner separation in thin multi-cavity three-plate molds — clean gate vestige and no runner damage.

📦 Packaging

Thin-Wall & High-Speed Packaging Molds

Long-stroke tension links (up to 120 mm) and urethane springs for positive runner separation in ultra-high-cycle caps and closure molds.

Key Mold Performance Challenges We Resolve:

Heat Fatigue & Thermal Cracking

Vacuum-quenched H13/SKD61 steel prevents thermal erosion in aluminum & zinc die casting.

High Wear & Galling Resistance

Advanced PVD coatings (TiAlN / DLC) extend pin service life by 3x–5x in abrasive glass-filled resins.

Mold Pin Bending & Flash Issues

Strict coaxiality (≤0.003 mm) and rigid alloy cores eliminate flash and core deflection during high-pressure injection.

CUSTOM MACHINING CAPABILITIES

Tailored Mold Opening Controllers Machining & Special Processing Limits

📏 Dimensional Limits

Micro & Complex Dimensions

Outer Diameter (OD): Min Ø 0.2 mm to Max Ø 50.0 mm
Pin Length: Up to 600 mm (ultra-long mold opening controllers supported)
Special Shapes: Stepped, tapered, flat D-cut, square head & eccentric pin tip

⚙️ Special Processes

Cooling & Deep Hole EDM

Cooling Channels: Internal water cooling holes & spiral baffle channels
Air Venting: Porous / vented mold opening controllers structures for gas release
Micro-EDM: Complex cavity contours, thread inserts and micro-grooves

🛡️ Surface Treatments

Advanced PVD Coatings

TiN / TiAlN: High-heat resistance for die casting molds
DLC (Diamond-Like Carbon): Ultra-low friction for dry / cleanroom molding
Nitriding Treatment: HV 900–1100 surface hardness for extended mold life

Support 100% Customization According to Your Drawings

Send us your CAD files for a free DFM (Design for Manufacturability) analysis and instant quotation.

.STEP.IGES.DWG.DXF.PDF

QUALITY ASSURANCE & INSPECTION

Rigorous Precision Inspection & Quality Control Standards

🔬 Inspection Hardware

High-Precision Testing Equipment

ZEISS CMM for complex 3D contours
Nikon optical projector & tool presetters (0.001 mm resolution)
Vickers hardness testers & surface roughness gauge

🎯 Quality Standards

Zero-Defect Quality Assurance

100% critical dimension inspection before packaging & shipment
Concentricity & runout verification under optical magnifiers
Surface micro-scratch & polish quality double-check

📜 Material Compliance

Full Material & Heat Treatment Traceability

Spectrometer material composition analysis report provided
Original Mill Test Certificate (MTC) & heat treatment logs
RoHS & REACH environmental compliance statements

Download Sample Quality Control & Inspection Reports

Review our standard CMM inspection sheet, Material Composition Certificate, and RoHS report templates.

MANUFACTURING PROCESS & LEAD TIME

Precision Machining Workflow & Reliable Delivery Timelines

Turning / Soft CNC

Precision rough turning & blank shaping

Heat Treatment

Vacuum quenching (HRC 48–62)

Rough Grinding

Centerless & OD precision grinding

Finish Grinding / EDM

Jig grinding & micro-EDM features

Surface Coating

PVD (TiN/DLC) or polishing (Ra 0.1)

100% CMM QC

Dimension check & safe packaging

📦 Standard Delivery

3–5 Working Days

For standard dimensions, off-the-shelf standard blanks, and standard SKD61/H13 materials.

🛠️ Custom Manufacturing

7–10 Working Days

For tailored CAD drawings, complex cooling channels, special coatings, or tight ±0.002 mm tolerances.

⚡ Fast-Track Option

24–72 Hours Express

Emergency mold repair green channel available for urgent downtime orders (upon CAD review).

MANUFACTURING CAPABILITY & DETAIL GALLERY

Precision Craftsmanship & Advanced Factory Hardware

Mirror Finish & Micro Polish

Ra 0.1 µm surface roughness, zero micro-burr or tool marks on pin tip.

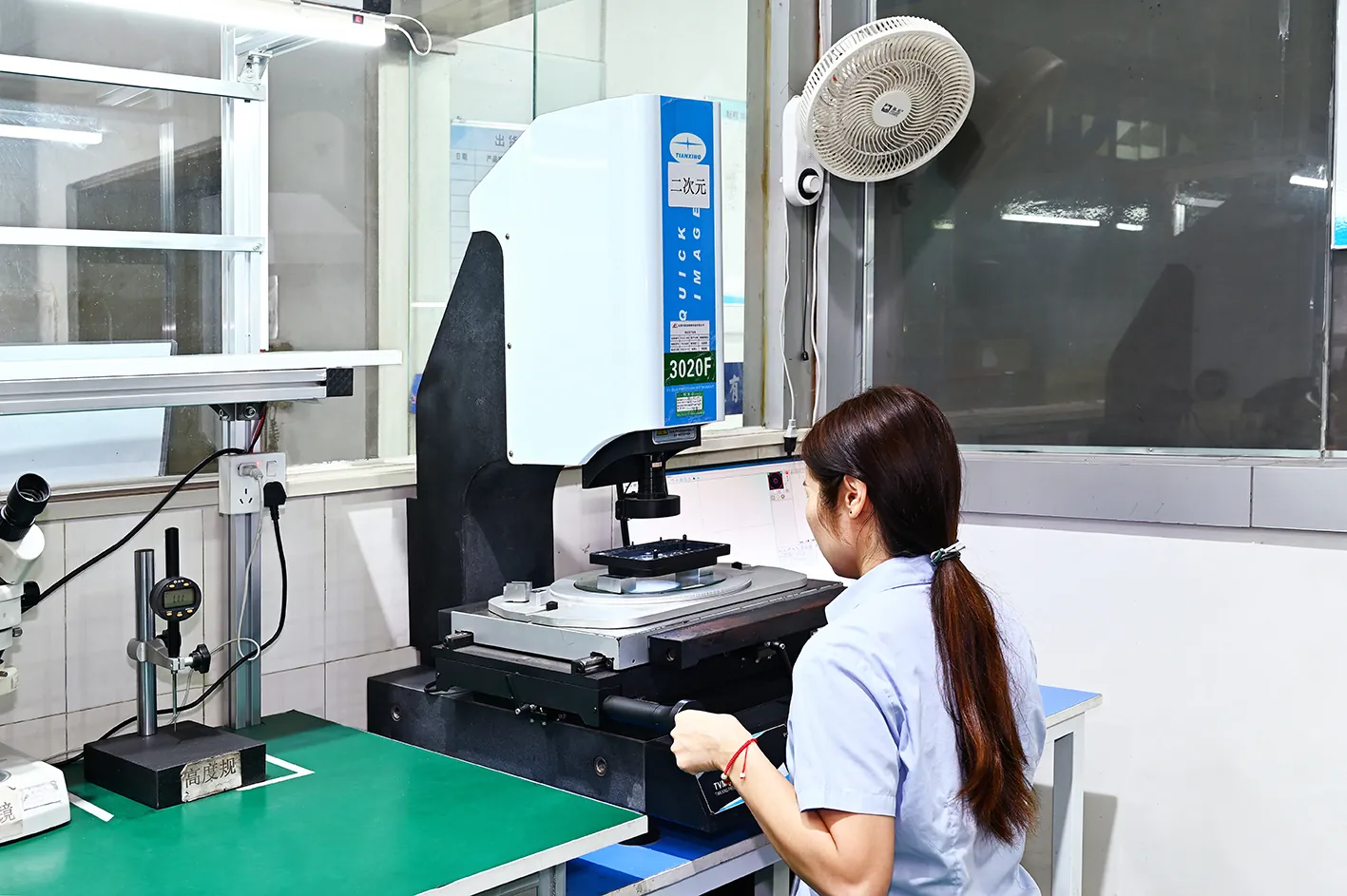

Precision Chamfering & R-Angle

Smooth transition radii and precise lead-in chamfers per CAD specs.

PVD Coating & Nitriding Layers

Uniform TiAlN / DLC coating film thickness with high surface adhesion.

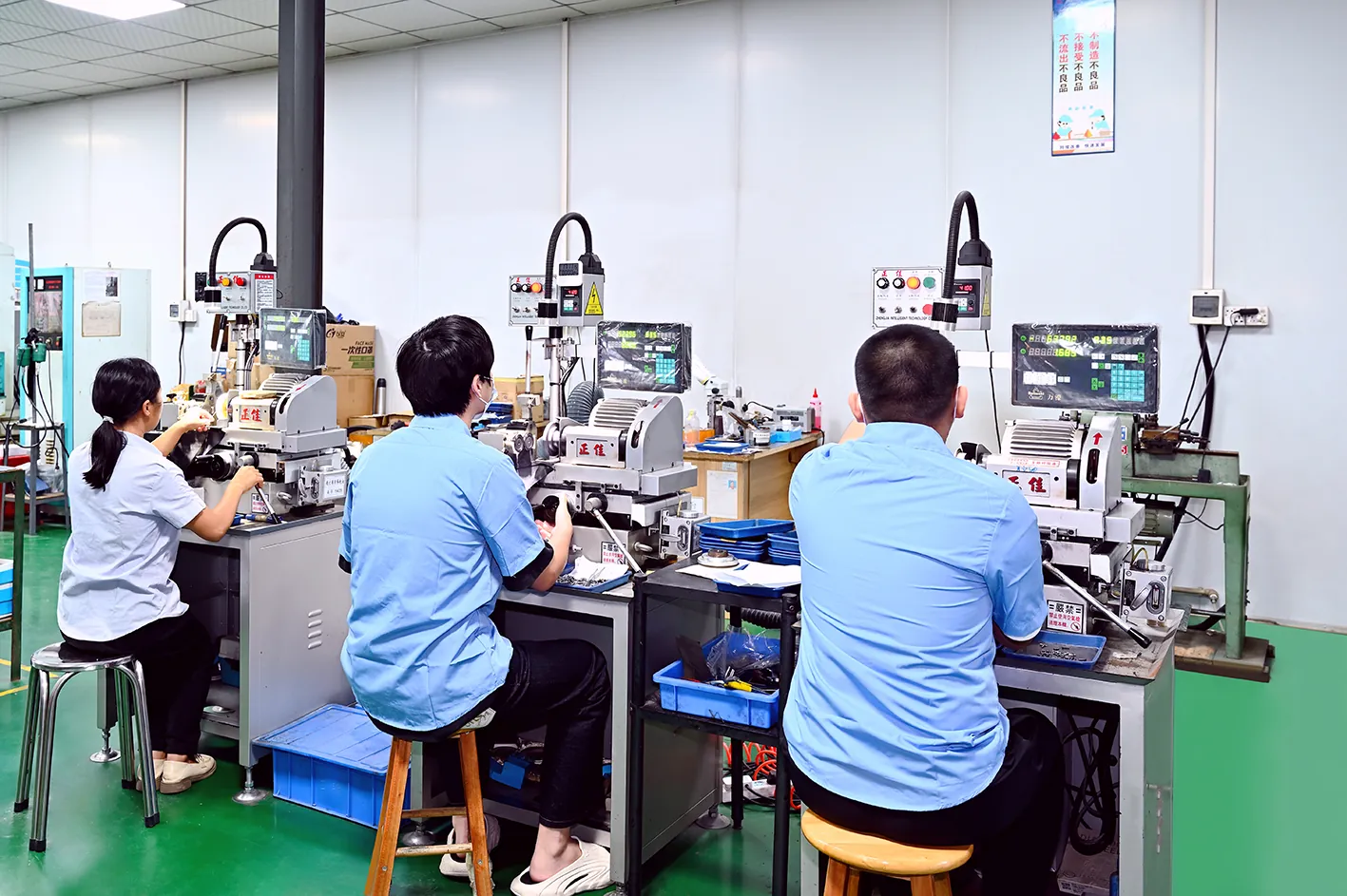

Complex Head & Tip Geometries

Precision stepped, D-cut flat, and eccentrically shaped pin profiles.

High-End Machining & Tooling Hardware:

⚡ Wire EDM

Seibu & Sodick Slow-Feed Wire Cut

Corner radius accuracy down to R0.02 mm
Surface roughness Ra 0.2 µm after wire cutting
Suitable for micro-slots, keyways, and complex pin contours

⚙️ Precision Grinding

Mitsui & WASINO Precision Grinders

Centerless & jig grinding for tight OD/length limits
Diameter tolerance controlled within ±0.001–±0.002 mm
Coaxiality & roundness ≤ 0.002 mm guaranteed

🛠️ CNC & EDM

Mikron High-Speed CNC & Sodick EDM

CNC high-speed turning & milling for blank preparation
Micro-cavity EDM for cooling channels and venting slots
Automated tool changers for high-volume consistency

ORDERING PROCESS & FREQUENTLY ASKED QUESTIONS

How to Order Custom Mold Opening Controllers & Frequently Asked Questions

📁 Step 1

Submit CAD & Specs

Send 2D/3D drawings (STEP, DWG, PDF) with quantity, material, and tolerance requirements.

⏱️ Step 2

24H DFM & Quotation

Our engineering team conducts DFM analysis and provides a competitive quote within 24 hours.

⚙️ Step 3

Precision Manufacturing

CNC turning, vacuum heat treatment, jig grinding, and surface coating per your specifications.

✈️ Step 4

100% QC & Express Shipping

100% CMM dimensional verification, anti-rust packaging, and global air express delivery.

What is your Minimum Order Quantity (MOQ) for custom mold opening controllers?

We support 1-piece prototyping! Whether you need a single replacement mold opening controllers or bulk batch production of 10,000+ pieces, we accommodate all order volumes.

How do you guarantee material authenticity and heat treatment quality?

Every batch comes with original Mill Test Certificates (MTC) and spectral material analysis reports. Vacuum heat treatment logs (HRC hardness testing) are provided upon request.

What packaging and anti-rust protection do you apply for international shipping?

All finished mold opening controllers undergo ultrasonic cleaning, immersion in heavy-duty anti-rust oil, individual vacuum plastic sealing, and padded shockproof box packaging.

Can you machine non-standard custom shapes or internal cooling channels?

Yes! We specialize in complex mold opening controllers including stepped profiles, D-cuts, square heads, micro-EDM cavities, and internal/spiral water cooling channels per CAD specs.

Ready to Upgrade Your Mold Component Precision?

Send us your drawing today to receive a free DFM review and detailed quotation within 24 hours.

🔒 100% Confidential | NDA Protected | Instant DFM Assessment
