Precision Die Casting Molds for Aluminum, Zinc & Magnesium
Aluminum and zinc die casting molds — precision and large-format tooling up to 2500×1800 mm, hot-work steels, in-house machining, trial and delivery with samples.
- Aluminum and Zinc
- Large Format
- Hot-Work Steels
- Cooling Design
- In-House Trial
- Precision Inserts
Fast Response within 2 HoursNDA ProtectedSTEP / IGES / X_T / DWG
Trusted Tier-1 & OEM Standards:
SERVICE SCOPE & CAPABILITIES
Die Casting Mold Types We Build
Complete die casting tooling for aluminum, zinc and magnesium alloys — from compact multi-cavity dies to large-format tooling machined entirely in-house on our gantry CNC.
ALUMINUM
Aluminum Die Casting Dies
- A380, ADC12, A356 & A413 alloys
- Thin-wall structural housings and brackets
- LED heat sinks and electronics enclosures
- High-pressure and low-pressure applications
ZINC
Zinc Die Casting Dies
- Zamak 3, 5 & 8 alloys
- Ultra-thin walls from 0.5 mm
- Precision detail for locks, hardware and automotive trim
- Low melting point extends die life
MAGNESIUM
Magnesium Die Casting Dies
- AZ91D & AM60 alloys
- Lightweight structural parts
- EMI-shielded housings
- Complex geometry with tight draft
LARGE FORMAT
Large-Format & High-Pressure Dies
- Gantry CNC capacity up to 2500×1800 mm
- Water-cooled cores and conformal cooling channels
- Slides, hydraulic cores and ejector systems
- Trial casting with dimensional report
DFM & ENGINEERING SUPPORT
Die Casting DFM — Designed for Sound, Repeatable Castings
Die casting molds run at 200–300 °C against molten alloy at 600 °C+, so fill, cooling and steel selection are decided before a single cut. Our engineers review every part for gateability, draft, wall balance and porosity risk before quoting.
Die Casting Mold DFM Analysis
Wall Thickness & Draft
0.8–1.5 mm thin walls for aluminum, down to 0.5 mm for zinc — with draft angles verified for clean ejection and minimal distortion.
Gating, Runner & Overflow Design
Balanced fill profile, overflow and venting layout to control porosity — validated in trial castings before delivery.
Cooling & Thermal Simulation
Conformal cooling channels where geometry allows, keeping die temperature stable for controlled solidification and cycle time.
Shrinkage & Tolerance Prediction
Alloy-specific shrink rates (0.5–0.7% for aluminum, 1.0–1.2% for zinc) compensated in the CAD model before machining.
Our 6-Step Die Casting Mold Workflow
Part and Gating Study
Gating, runner and overflow design for sound castings.
Die Design
3D design with cooling simulation and steel selection.
Machining
Gantry CNC, wire EDM and precision grinding of cavities.
Heat Treatment
Hardening to hot-work specifications with records.
Assembly
Slide, core and ejector assembly by senior toolmakers.
Trial and Delivery
Trial casting, sample approval and dimensional report.
Free DFM Review on Your Die Casting Part
Send the part drawing and production volume — our engineers will confirm gate layout, steel grade and expected die life.
STEP · IGES · X_T · DWG · PDF
MACHINING CAPABILITIES & EQUIPMENT
Die Casting Mold Precision & In-House Equipment
Die Casting Mold Specifications
| Specification Parameter | Automotive & EV Standard | High-Precision Custom |
|---|---|---|
| Die Size Capacity | 1500×1200 mm standard | 2500×1800 mm gantry max |
| Cavity Tolerance | ±0.02 mm | ±0.01 mm on inserts |
| Surface Finish | Ra 0.8 µm | Ra 0.4 µm optical ground |
| Die Steel Hardness | 44–50 HRC | 48–53 HRC premium grade |
| Die Life (Aluminum) | 80,000–120,000 shots | 150,000+ shots with coating |
| Cooling Channels | Straight drilled | Conformal where geometry allows |
Key In-House Equipment

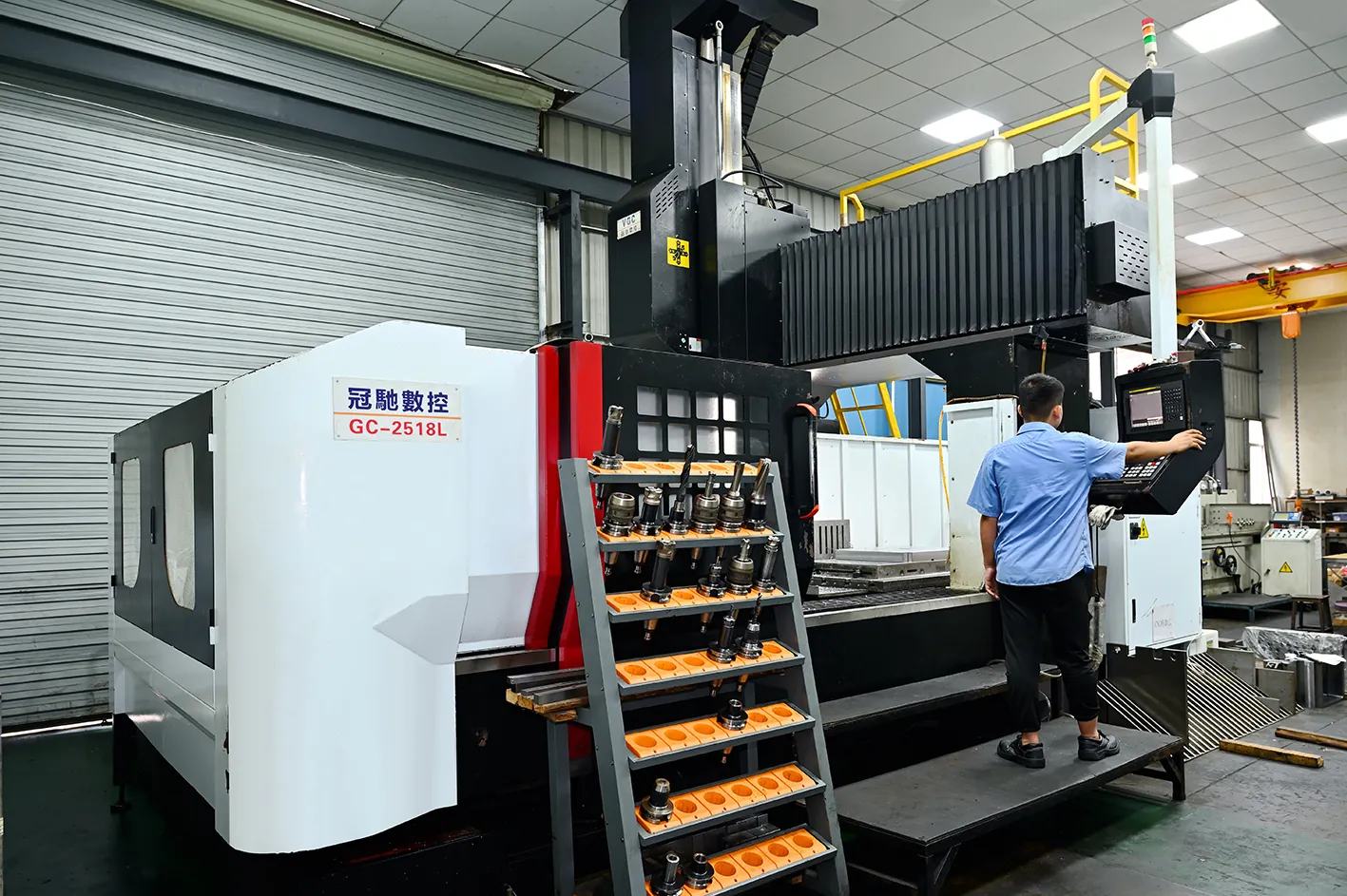

Gantry Machining Center
2500×1800 mm capacity for large die blocks and big cavity roughing.
Mikron High-Speed CNC
HSM finishing of cores, inserts and thin-wall features.
Seibu Wire EDM
±0.005 mm inserts, cores and shut-off details.
Sodick Sinker EDM
Deep ribs, blind cavities and fine internal features.
From Steel Block to Trial-Ready Die
Part Study
Gate, runner and overflow layout
Die Design
3D model with cooling simulation
Machining
Gantry CNC, EDM and grinding
Heat Treatment
In-house hardening with records
Trial & Delivery
Trial castings and sample approval
MATERIALS & COMPLIANCE
Hot-Work Steels for Die Casting Dies
Die casting dies see molten alloy at 600 °C+ and die surface temperatures of 200–300 °C. We build exclusively in hot-work tool steels, hardened and nitrided in-house, with full material traceability on every die.
H13 (1.2344)
Grade Equivalents
Hardness After HT
Best For
8407 (1.2344 ESR)
Grade Equivalents
Hardness After HT
Best For
DAC55 (SKD61 Upgraded)
Grade Equivalents
Hardness After HT
Best For
Full Material Traceability on Every Die
Original Mill Test Certificates, spectral analysis, in-house vacuum heat treatment records and HRC hardness reports included in the documentation pack.
🔒 PPAP Level 3 documentation available on request
QUALITY ASSURANCE & INSPECTION
Rigorous Precision Inspection & Quality Control Standards
🔬 Inspection HardwareHigh-Precision Testing Equipment
- ZEISS CMM for complex 3D contours
- Nikon optical projector & tool presetters (0.001 mm resolution)
- Vickers hardness testers & surface roughness gauge
🎯 Quality StandardsZero-Defect Quality Assurance
- 100% critical dimension inspection before packaging & shipment
- Concentricity & runout verification under optical magnifiers
- Surface micro-scratch & polish quality double-check
📜 Material ComplianceFull Material & Heat Treatment Traceability
- Spectrometer material composition analysis report provided
- Original Mill Test Certificate (MTC) & heat treatment logs
- RoHS & REACH environmental compliance statements
Download Sample Quality Control & Inspection Reports
Review our standard CMM inspection sheet, Material Composition Certificate, and RoHS report templates.
ORDERING PROCESS & FREQUENTLY ASKED QUESTIONS
How to Order Die Casting Molds & Frequently Asked Questions
📁 Step 1
Submit CAD & Specs
Send 2D/3D drawings (STEP, DWG, PDF) with quantity, material, and tolerance requirements.
⏱️ Step 2
24H DFM & Quotation
Our engineering team conducts DFM analysis and provides a competitive quote within 24 hours.
⚙️ Step 3
Precision Manufacturing
CNC turning, vacuum heat treatment, jig grinding, and surface coating per your specifications.
✈️ Step 4
100% QC & Express Shipping
100% CMM dimensional verification, anti-rust packaging, and global air express delivery.
Which alloys do you design dies for?
Aluminum (A380, ADC12 and similar), zinc and magnesium alloys — including thin-wall and structural castings.
What size dies can you build?
Our gantry CNC handles workpieces up to roughly 2500×1800 mm — among the largest in-house capacities in the region.
What steel do you use for die casting dies?
H13-class hot-work steel (H13, 8407, DAC55), hardened and nitrided in-house with records. Surface treatments available for longer die life.
Do you provide trial castings?
Yes — dies are trialed and sample castings are approved before shipment, with a dimensional report included.
Can you repair die casting dies?
Yes, including crack repair, insert replacement, cooling channel rework and re-certification of heat treatment.
What documentation ships with the die?
Steel material certificates, heat treatment records, cavity and core CMM reports, cooling circuit pressure test and a trial-run summary — the pack automotive customers need for PPAP.
Ready to Quote Your Die Casting Mold?
Send your part drawing or 3D model today — get a free DFM review, die design proposal and detailed quotation within 24 hours.
🔒 100% Confidential | NDA Protected | Trial Castings Included
