Gas Spring Upgrade Cuts Progressive Die Operating Costs 48%

Introduction

An automotive HVAC and structural bracket fabricator came to DieStrike with a progressive die that was costing them more in maintenance than it earned in uptime. The tool is a 4-stage progressive die running at 80 SPM, stamping 2.5 mm SAE 1010 hot-rolled steel into brackets at 3.5 million parts per year. Stripping that thick material off the punches demands 12,000 daN of force, and the die had been built the conventional way: sixteen 50 mm coil springs in the ISO 10243 red series, sized to carry the stripping load.

At 80 SPM the chrome-silicon coils never got a chance to cool. The springs ran hot, and fatigue fractures became a weekly event — every 150,000 to 200,000 cycles the die came down with a broken spring. For a fabricator whose presses are priced in thousands of dollars an hour, a predictable weekly failure was not a maintenance nuisance; it was the operating plan of the tool, and it was a bad one. The die spent its life being repaired, and the part quality coming out of it was drifting while nobody was looking.

They came to DieStrike because they wanted the tool re-engineered, not re-stocked with spare springs. The question was not which replacement spring lasts a few more thousand cycles, but what springing system can carry this stripping load at this speed for a real production interval — and that is a design and machining problem, not a parts-bin problem. They asked for two things: a springing system with a service interval measured in millions of cycles, and a maintenance calendar the plant could plan around. Both answers had to come out of the tool itself — how the load is carried, how evenly it is distributed, and how the system reports its own condition.

The Snapshot

Here is the project at a glance — the part, the material, the tool, and the numbers that mattered.

• A 4-stage progressive die at 80 SPM stamping 2.5 mm SAE 1010 hot-rolled steel at 3.5 million parts per year.
• Stripping demanded 12,000 daN of force, carried by sixteen 50 mm ISO 10243 coil springs.
• Coil fractures arrived every 150,000–200,000 cycles, with part scrap running at 2.4%.
• Four manifolded nitrogen gas springs (1,000 daN each) cut total tool operating cost by 48%.

The Challenge

The failure was not random, and that made it worse. Every 150,000 to 200,000 cycles a chrome-silicon coil cracked under the heat and cyclic load of 80 SPM stamping. Each fracture stopped the press for 1.5 hours of spring changeout and re-setup, and at USD 1,200/hour of press time, that single line item was already a five-figure annual cost by itself. More importantly, it was a surprise cost that arrived on its own schedule. Every fracture was an emergency call-out, and emergency maintenance has a way of landing on the least convenient shift.

The secondary damage is what turned a spring failure into a tool failure. When a coil broke, the stripper plate lost its support on one corner and tilted as it came down. A tilted stripper jams the punch it guides, and on this tool a jammed major punch meant USD 8,500 in toolroom repair work. The fabricator was paying the spring's price and the punch's price, and the second bill was always bigger than the first.

Beneath both of those sat a quieter problem. As the coils aged, their force decayed, the strip started to shift inside the die, and part scrap climbed to 2.4%. The die was producing bad parts between failures — so the cost of the coil system was understated twice: once in the repair ledger, and once in the scrap bin. Nobody had added it up as one number, because the failures arrived as separate crises. The toolroom could rebuild the die, but it could not rebuild the production plan around a failure that kept moving.

How We Solved It

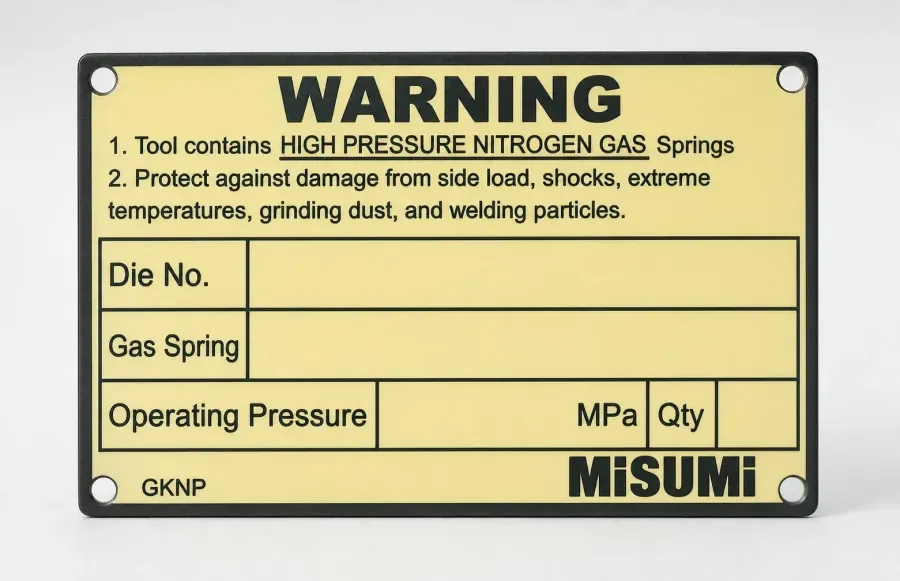

The fix was a system change, not a part swap. We replaced the sixteen coil springs with four nitrogen gas springs rated 1,000 daN each, built to ISO 11901 with safety certification. Gas springs deliver near-constant force across the stripping stroke instead of the rising-then-falling curve of a coil, and they do it without the fatigue mechanism that was cracking the chrome-silicon springs at high speed. Four cylinders replace sixteen coils because the gas system carries the same stripping job differently — but the change only pays off if it is installed as engineered, and that is where this project stood or fell.

The installation is where machining accuracy decides the outcome. We deepened the existing spring pockets and anchored the cylinders with precision brackets so each gas spring sits on a stable, repeatable seat. DieStrike machined the manifold block that ties the cylinders together, with bore positions held to ±0.002 mm. If the manifold bores are off by even a few microns, the cylinders load unevenly and the stripper tilts — the exact failure the gas system was meant to eliminate. This is the same tolerance discipline we apply in our DFM and mold design review work before any steel is cut.

All four cylinders are manifolded to a single external control panel, which keeps nitrogen pressure identical across the stripper and holds plate flatness within 0.05 mm. One panel, one pressure reading, one adjustment point — instead of sixteen springs with sixteen unknown states. The whole assembly is a mold-making precision job: equalized load, verified geometry, and a control point the press operator can actually monitor between runs.

The Results

The results table is the twelve-month ledger. Spring service life stretched from 180,000 cycles to 1,750,000 cycles to first seal service — 9.7× longer — and every downstream number moved with it. Annual spring hardware cost fell from USD 3,840 to USD 1,200, unscheduled press stops fell from 18 per year to 1, and part scrap fell from 2.4% to 0.15%.

Add it up and total tool operating cost over 12 months dropped from USD 78,240 to USD 40,685 — a 48% reduction. USD 30,600 came back from downtime alone, and USD 39,375 came back from scrap value. The same press, the same die, the same part — at half the operating cost, with a maintenance calendar rewritten from weekly to yearly.

Why It Held

The system held because it removed the failure mechanism instead of rescheduling it. A chrome-silicon coil fails by fatigue: heat and cycling crack the wire, and the crack is sudden — the strip lifts, the stripper tilts, the punch jams. A nitrogen gas spring has no fatigue mechanism at stamping speed; its wear surface is the seal, and seals wear gradually. That is why the first gas-spring service event landed at 1,750,000 cycles instead of 180,000, and why the press went from 18 unscheduled stops a year to 1. Sudden fracture became gradual pressure decay, which is something a maintenance planner can schedule around.

The installation is what keeps the gas system balanced across that life. The manifold holds all four cylinders at identical pressure, the ±0.002 mm bore positions keep the load path straight, and the anchored brackets keep the geometry from walking. Plate flatness holds within 0.05 mm run after run, so the stripper never tilts — the failure that used to cost USD 8,500 in toolroom repairs simply has no way to start. When the pressure does decay, the control panel shows it before the process does, and a planned service replaces a fracture. That is the difference between a system that fails and a system that ages — and it is why the 48% operating cost reduction held across the full twelve months. The toolroom stopped keeping a standing stock of red-series coils, the press schedule stopped reserving slack for spring changeouts, and the maintenance board finally showed the die the way the plant actually runs it — as a steady producer instead of a recurring event.
